Architecture 2030 developed the Zero Tool for building sector professionals, 2030 Challenge and 2030 Commitment adopters, 2030 District Network Members, and policymakers. The Zero Tool is used to compare an existing or planned building’s energy use intensity (EUI) with similar building types, understand how a building achieved its EUI (via energy efficiency, on-site renewable energy, and/or green power purchases), and set EUI targets.
Prior to the Zero Tool, ENERGY STAR’s Target Finder was the primary program for determining a building’s site energy use intensity (EUI) baseline and design target. However, ENERGY STAR changed their baseline from the 2003 Commercial Building Energy Consumption Survey (CBECS 2003) to CBECS 2012. The Zero Tool’s analysis is based on the CBECS 2003 dataset, an industry baseline which has been agreed upon by most building sector organizations including Architecture 2030, ASHRAE, AIA, and USGBC. The Zero Tool allows those designing to the 2030 Challenge and other targets to maintain pre-existing baselines in order to continue to measure their progress.
The Zero Tool also expands on Target Finder’s features, providing simple, clear, and graphic results for visualizing baselines, building design targets, and existing building performance.
A Zero Score allows properties and building codes to be compared based on their relative ‘percent from zero’, allowing for normalized property and code comparisons across diverse locations, space use types, and building characteristics. For more information about Zero Scores, see below.
Who Uses the Zero Tool?
The Zero Tool is designed to be used by building sector professionals, 2030 Challenge and 2030 Commitment adopters, 2030 District Network Members, and policymakers.
Zero Tool for Portfolios
Baselining more than one building? Check out the Zero Tool for Portfolios, a bulk upload and export feature that generates baselines for an entire portfolio of buildings in a few simple steps.
Zero Tool API
A free and open-source Application Program Interface (API) for the Zero Tool software is available, enabling the software to be implemented as a website or an application for smart phones and tablets.
To request access to the API, fill out the Zero Tool API Request form.
What is a Zero Score?
A Zero Score is a value assigned to a building, intended to help project teams understand the building’s energy performance and progress towards achieving Zero Net Carbon. A Zero Score is a relative performance metric, so it can be used to compare buildings across all locations, types, and sizes.
The baseline, a Zero Score of 100, represents a typical modern building with an energy consumption profile based on data from the 2003 Commercial Building Energy Consumption Survey (CBECS) or the 2001 Residential Energy Consumption Survey (RECS) and normalized by climate, space type, building size, occupancy, and schedule. A Zero Score of zero represents a Zero Net Carbon building. All values in between are plotted linearly. A building’s current or target Zero Score can be determined by dividing the building’s current or target energy use intensity (EUI) by its baseline EUI.
The Zero Score calculation methodology is compatible with approaches used for the Zero Energy Performance Index (zEPI) and the Home Energy Rating System (HERS) Index.

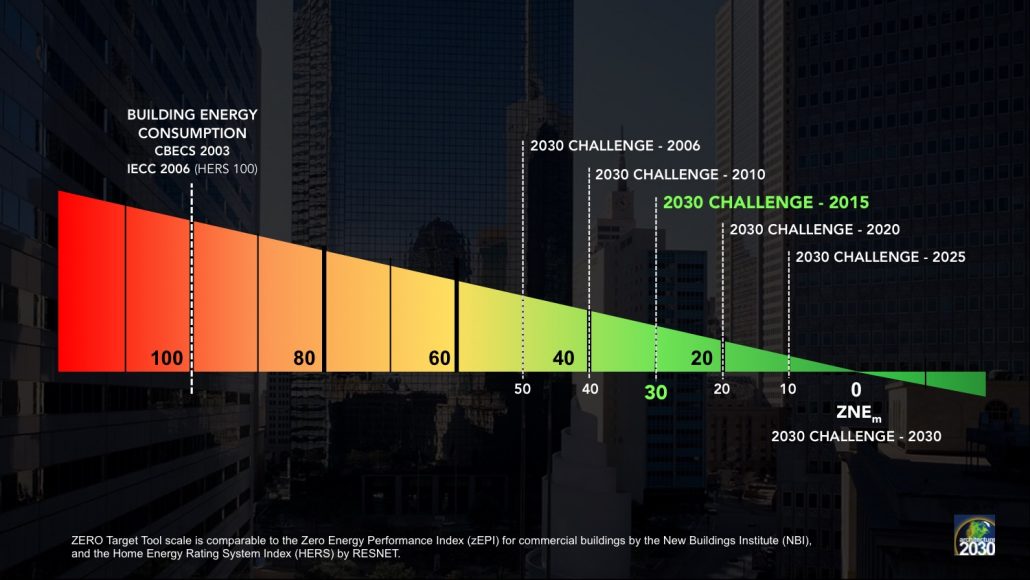

What is shown on the Zero Scale?
The Zero Scale is intended to help project teams better understand the requirements of an energy reduction target and visualize their relative progress towards achieving Zero Net Carbon. The scale shows Zero Score values ranging from 100 to zero, with three markers related to the project: BASELINE, TARGET and YOUR BUILDING.
 |
The BASELINE marker lists the energy use intensity (EUI) and Zero Score for a typical modern building that is normalized by climate, space type, building size, occupancy, and schedule.
The TARGET marker lists the EUI and Zero Score that the project team should attempt to achieve based on the target they entered into the Energy Reduction Target input box. TARGET values are calculated based on a linear scaling, or percent reduction, from the BASELINE values.
The YOUR BUILDING marker lists the EUI and Zero Score for the building based on its actual energy consumption and generation. These values are calculated from inputs entered into the Annual Energy Purchased and Annual Energy Generated input boxes. Incremental EUIs and Zero Scores are also shown, indicating the building’s performance with no renewable energy generation, or with on- or off-site renewable energy generation only. If no values are entered, the YOUR BUILDING marker is not shown.
Where do building codes fall on the Zero Scale?
Use the interactive chart below to visualize where various building codes and energy reduction targets fall on the Zero Scale.
Zero Tool Methodologies and Assumptions
The intent of the Zero Tool was to exactly replicate the underlying assumptions and methodologies and corresponding outputs of ENERGY STAR’S Target Finder using CBECS 2003, with the goal of preserving CBECS 2003 based, Target Finder derived energy consumption baselines. ENERGY STAR’S full set of Target Finder technical documentation reports have been archived and saved here.
In a few cases, an exact replication of Target Finder was not possible or not desirable. Those instances are detailed below.
HDD/CDD Zip Code Mapping
The Zero Tool uses the same underlying dataset as Target Finder (NOAA’s 1981-2010 Climate Normals), which provides HDD/CDD data for 9794 weather stations eligible to be mapped to U.S. zip codes. However, there are two variations within the Zero Tool:
- ENERGY STAR reduced NOAA’s weather station list from 9794 to 778, in order to use only “stations with complete data going back to at least the year 2000”.* That list of 778 weather stations was not made public, nor were the assumptions guiding the definition of “complete data”, so the Zero Tool instead maps to the full set of 9794 weather stations.
- Within both the Zero Tool and Target Finder zip codes are typically mapped to the closest weather station. However:
“Based on the experience of ENERGY STAR partners benchmarking in coastal and mountainous regions with unique weather patterns, [ENERGY STAR] performed an additional manual review of some zip codes to identify areas where the closest station may not provide a good representation of the weather. Fewer than 1.5% of zip codes in the U.S. are mapped to a weather station other than the closest station.”*
This methodology and list were also not made public, so the Zero Tool maps zip codes to the closest weather station.
* EPA Climate and Weather Technical Reference
Multifamily Housing
To estimate Site EUIs based on CBECS 2003 but normalized for location, building use type, and building use characteristics, Target Finder first calculates Source EUIs, then uses state- and use-type specific conversion factors to convert to Site EUIs. However, in the process of creating the Zero Tool we realized that for some states ENERGY STAR had inadvertently used the Source-to-Site conversion factor for “Other” space types instead of the conversion factor for “Multifamily” space type. For the Zero Tool we chose to instead use the Multifamily conversion factor for all states, which may result in discrepancies with Target Finder.
Who created the Zero Tool?
The Zero Tool was co-developed in 2016 by Architecture 2030 and Maalka.
